Customized Video Matrix Processor , Meeting Room Control Software HD Video Wall Controller

China Customized Video Matrix Processor , Meeting Room Control Software HD Video Wall Controller supplier
Customized Video Matrix Processor , Meeting Room Control Software HD Video Wall Controller supplier Customized Video Matrix Processor , Meeting Room Control Software HD Video Wall Controller supplier Customized Video Matrix Processor , Meeting Room Control Software HD Video Wall Controller supplier

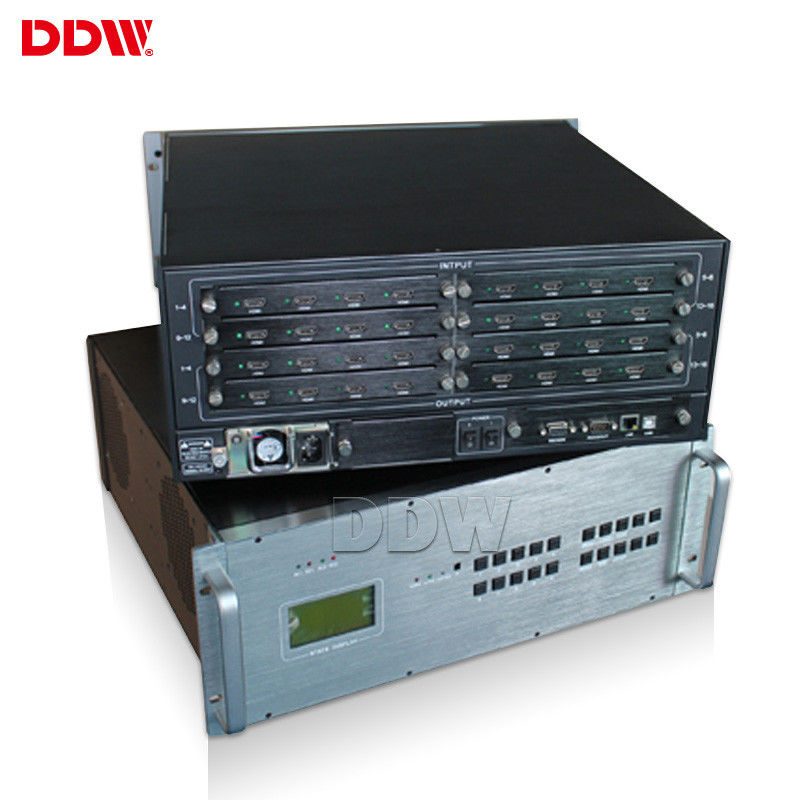

Large Image :  Customized Video Matrix Processor , Meeting Room Control Software HD Video Wall Controller

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC , 3C
Model Number: DDW-VPH1212

Payment & Shipping Terms:

Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Product Name: Video Wall Processor Output Resolution: 1920*1080
Roam,zoom,PIP: Support Max PIP Per Screen: 1,4,16,customization
Color Quality: 32bit Input Output Signal Sources: HDMI,DVI,VGA,AV,YPBPR,IP
Control Method: RS232,IP Consumption: 12W/channel

Customized Video Wall Processor DDW-VPH1212 For Meeting Room Special Control Software


Video Wall Processor Performance:
1, Combinations :2x2, 2x3, 3x3, 3x4, 4x4, 5x4, 5x5 or any combination customized
2, Embedded 3D digital signal noise reduction, support 1920x1080 resolution.
3, Signal interface --- RS232, HDMI, DVI, VGA, YPbPr, AV
4, RS232 control, easy operation for the system by control software


Pure hardware architecture board any combination:

Industrial chassis with CPCI structure;
Modular design, dual backup redundant power supply support hot backup, fan and other modules at will;
Supporting the system processing module hot-swappable, provide various types of chassis and board, for customers to save costs;



Multi – group video wall management:

It can manage several sets of splicing walls at the same time, common input signal sources between splicing walls, and the output does not interfere with each other;
Setting different resolutions, adjust colors and other parameters.
Support PC, mobile control software pre-monitoring display



DDW Video Wall Processor Technical Specifications

Model series With CBD Function No CBD
Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, support multiple splicing player freely , and can show differentsigal at the same time to the system,require screen built in daisy chain board ~ 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional) CVBS Support PAL/NTSC format, multiple BNC ports ~
VGA/RGBHV Multi-channel VGA DB-15 ports, support VGA full-format input ~
HDMI, DVI, 4K-DVI, IP Support 4K(3840x2160) input, each IP decode 4 channels ~
YPbPr, YCbCr(customizable) The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV ~
SDI(customizable) BNC Port ~
AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; ~ ~
Input resolution up to 4K,commonly used resolutions
Output signal format VGA, RGBHV signal channel XGA(1024x768@60Hz)/DB-15 port ~
HDMI, DVI, 4K-DVI HDMI, DVI output ~
3G SDI(customzable) BNC Port loop out ~
AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; ~ ~
Output resolution up to 4K,commonly used resolutions
Control Standard RS232 port
IR remote control(customzable), LAN contril, IOS, Android APP control( optional)
System control software Special control software
Power Supply Redundant power supply 110-220VAC, 50/60Hz
Consumption 12W/channel
Working temperature -20°C——60°C
Working Humidity 5-95%
Case specification 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
Serial Control Interface RS-232,9-pin female, Type-D
Baud Rate 115200
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365x7x24hrs



Hareware video wall controller U Chassis Specs

Chassis U size Controller Dims(mm)
L*W*H
Pack dims(mm)
L*W*H
N.W(kg) G.W(kg) Max input Nos. Max output Nos. Max Power Consumption(Watts)
2U 406×440×102 590×530×190 11.25 12.25 8 8 200
3.5U 450x440x170 620x620x270 18.25 19.25 16 16 320
7U 442×402×320 590×530×460 29.5 31.50 32 32 400
12.5U 446×440×553 625×580×725 37.85 39.85 71 68 750
23U 442×43×1022 615×570×1180 80.46 82.46 143 140 1300
