1.8 Mm 55 Inch HDMI Video Wall , DVI Input 1920x1080 Seamless LCD Screens

China 1.8 Mm 55 Inch HDMI Video Wall , DVI Input 1920x1080 Seamless LCD Screens supplier
1.8 Mm 55 Inch HDMI Video Wall , DVI Input 1920x1080 Seamless LCD Screens supplier 1.8 Mm 55 Inch HDMI Video Wall , DVI Input 1920x1080 Seamless LCD Screens supplier 1.8 Mm 55 Inch HDMI Video Wall , DVI Input 1920x1080 Seamless LCD Screens supplier 1.8 Mm 55 Inch HDMI Video Wall , DVI Input 1920x1080 Seamless LCD Screens supplier

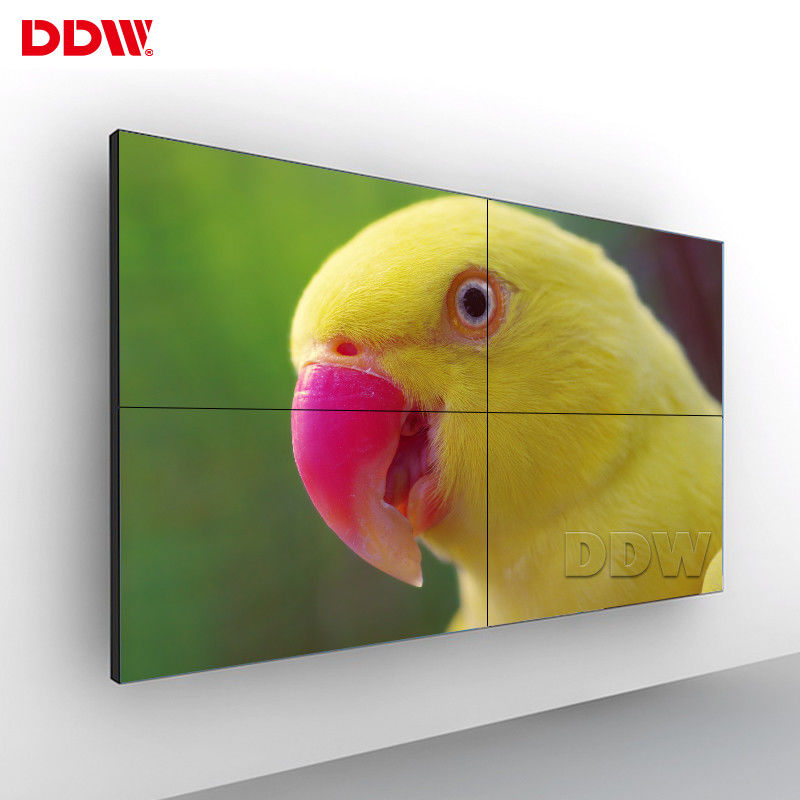

Large Image :  1.8 Mm 55 Inch HDMI Video Wall , DVI Input 1920x1080 Seamless LCD Screens

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550DUN-THA3

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Bezel Width: 1.8 Mm Product Name: LCD Video Wall Display
Backlight: LED Color: 8Bit , 16M
Aspect Ratio: 16:9 Working Humidity: 0.85
Cooling: Low Noise Fans Contrast: MEGA DCR

1.8 mm LCD Video Wall Display 55 inch LW550DUN-THA3 width 1211.4mm 1920x1080




LCD Video Wall Display​ Application

LCD Video Wall Display technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.



LCD Video Wall Display​ basic informations:

  •  With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
  •  Adapting modular components, making maintenance operations and parts replacement very easily;
  •  The installation method: floor standing cabinets;
  •  Dot Pitch: 0.63mm(H)*0.63mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
  •  Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
  •  7x24x365 keep working;

LCD Video Wall Display​ key features:

  •  Panel size: 46″, 49″, 55″, 60″; Optional.
  •  Ultra narrow frame design, the narrowest bezel is 1.8mm and the bezel can be optional.
  •  Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
  •  The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
  •  Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
  •  Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
  •  Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
  •  Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;

LCD Video Wall Display​ Specifications:

Model No: DDW-LW550DUN-THA3
LCD Technology LG IPS LCD
Active Screen Diagonal 55''
Total Bezel Width 1.8 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 700 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH)

0.63x0.63 mm

Active Display Area(WxH)

1209.6×680.4mm

Panel Dimension(WxHxD)

1211.4x682.2x53.3 mm

White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



LCD Video Wall Display​ Board Specifications

Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)
