55 Inch Curved Video Wall Seamless Refresh Rate 60Hz AC 220v-250v High Brightness

Good quality Interactive Video Wall for sales
Good quality Interactive Video Wall for sales
Thanks for your hard working for our meeting room project, Your professional service , quality products and competitive price are very impressive.

—— Mr.Vincent Kim

Quickly response and fully understanding what's the client's requirement, professional technology, serious, We agree with the service of your company

—— Mr.James

A perfect shopping! we are very satisfied with their high quality LCD video wall.

—— Mr.West

I'm Online Chat Now

55 Inch Curved Video Wall Seamless Refresh Rate 60Hz AC 220v-250v High Brightness

China 55 Inch Curved Video Wall Seamless Refresh Rate 60Hz AC 220v-250v High Brightness supplier
55 Inch Curved Video Wall Seamless Refresh Rate 60Hz AC 220v-250v High Brightness supplier 55 Inch Curved Video Wall Seamless Refresh Rate 60Hz AC 220v-250v High Brightness supplier 55 Inch Curved Video Wall Seamless Refresh Rate 60Hz AC 220v-250v High Brightness supplier

Large Image :  55 Inch Curved Video Wall Seamless Refresh Rate 60Hz AC 220v-250v High Brightness

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550HN16

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: Curved Video Wall Backlight: LED
Resolution: 1920x1080 Input Voltage: AC 220v-250v
Total Physical Bezel: 1.7mm Refresh Rate: 60Hz
Panel Width: 1211.54 Mm Panel Height: 682.34 Mm

LW550HN16 55 Inch Curved Video Wall Seamless Refresh Rate 60Hz AC 220v-250v





Narrow Bezel:

  •  55 inch LCD video wall narrow bezel available: 1.7 mm, 1.8 mm, 3.5 mm;
  •  Interactive Video Wall show commercial advertisement, food picture, video play, product picture;

View Angle

  •  178 degree wide viewing angle, the full range of display;
  •  Different modules optional: such as heating module, built in camera, air conditioner etc;

HD Panel Display

  •  HD video wall unit: high brightness, contrast and gamut.
  •  Resolution: 1920×1080, 3840×2160; Color: 16.7M; Brightness: 500cd/m2;

Curved Video Wall​ Functions:

  •  Supporting 225 units (15×15) multi-matrix;
  •  Single screen display. Each unit can display the picture independently;
  •  Image overlay. Superimposed on screen another picture;
  •  Easy to choose full screen or multi-screen display by control video wall controller.

 Panel dimension and interfaces:

  •  Dimension: 1211.54 x 682.34 mm;
  •  Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

Total bezel width

  •  Bezel size: 1.7 mm;
  •  The front shell adapting black matt anti magnetic unique and exquisite strong in anti interface;

Connection topology and applications:

  •  Supports multiple signal input: BNC, YPbPr, VGA, HDMI, DVI and RS232;

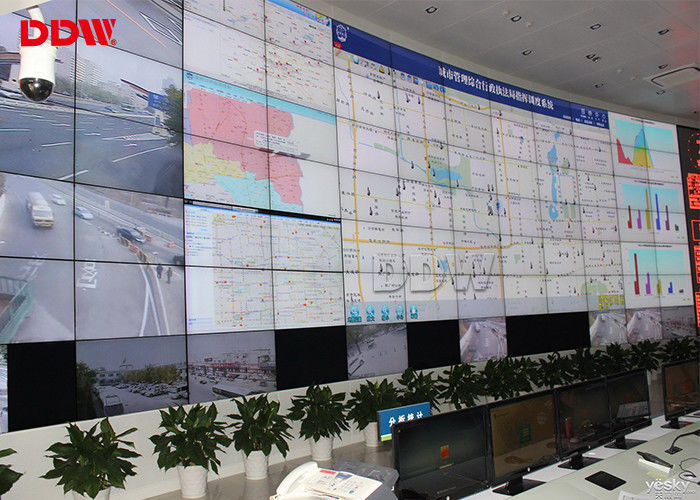

  •  Applications: Financial center, real estate center, security room, cinema, theater, etc;



Curved Video Wall​ Specifications:

Model No: DDW-LW550HN16
LCD Technology SAMSUNG IPS LCD
Active Screen Diagonal 55"
Total Bezel Width 1.7 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD) 1211.54×682.34x68.1mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



Curved Video Wall​ Board Specifications

Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)



55 Inch Curved Video Wall Seamless Refresh Rate 60Hz AC 220v-250v High Brightness

55 Inch Curved Video Wall Seamless Refresh Rate 60Hz AC 220v-250v High Brightness55 Inch Curved Video Wall Seamless Refresh Rate 60Hz AC 220v-250v High Brightness
