700 Nits 3.5mm 46 Video Wall 3x3 , Traffic Management Center Digital Video Wall

China 700 Nits 3.5mm 46 Video Wall 3x3 , Traffic Management Center Digital Video Wall supplier
700 Nits 3.5mm 46 Video Wall 3x3 , Traffic Management Center Digital Video Wall supplier 700 Nits 3.5mm 46 Video Wall 3x3 , Traffic Management Center Digital Video Wall supplier 700 Nits 3.5mm 46 Video Wall 3x3 , Traffic Management Center Digital Video Wall supplier 700 Nits 3.5mm 46 Video Wall 3x3 , Traffic Management Center Digital Video Wall supplier

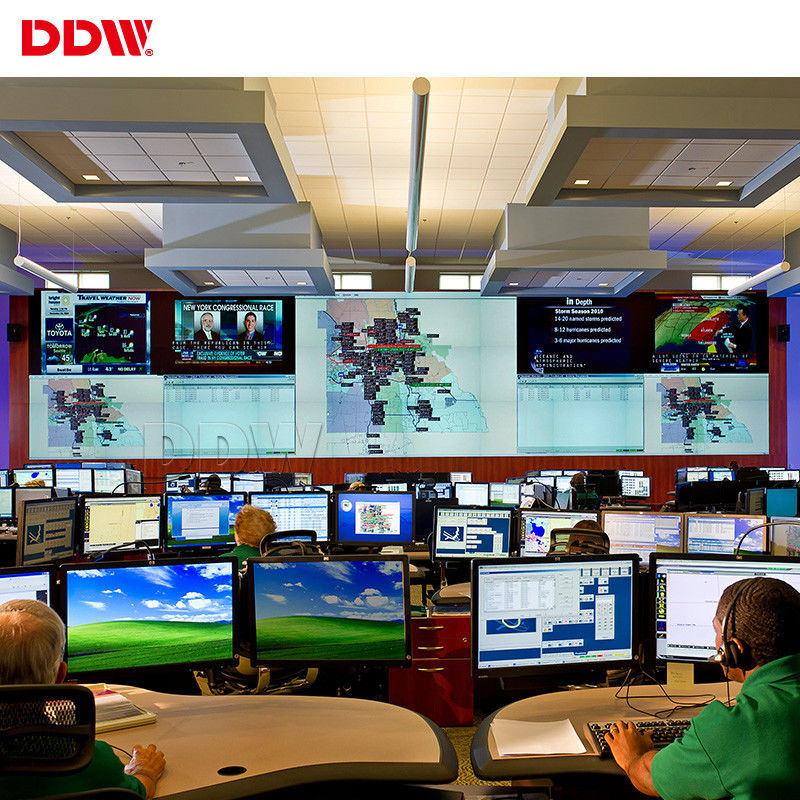

Large Image :  700 Nits 3.5mm 46 Video Wall 3x3 , Traffic Management Center Digital Video Wall

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW460HN12

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: CCTV Video Wall Panel Dimension: 1021.98mmx576.57mm
Refresh Rate: 60Hz Response Time: <=6ms
Display Colors: 8Bit,16.7M Power Supply: AC100~240V 50/60 HZ
Cooling: Low Noise Fans Surface: Anti-glare

60Hz CCTV Video Wall advertising 700 nits LW460HN12 3.5mm 46" 1920 x 1080





CCTV Video Wall​ Introduction

Interactive Video Wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.



CCTV Video Wall​ Key features:

1. Support a variety of signal ports.

2. Built-in splicing module, Support splice function

3. Support creating one window PIP across the screen, roaming service, scaling,PIP

4. Support matrix joint control.

5. Unique DNX motion supplement image processing technology,

6. Dynamic image without motion trail

7. Splicing image processing RS-232 RJ45 loop-circuit input/output.

8. Input by remote control with wire, mobile receiver head.



46 " CCTV Video Wall main parameters

  •  Original DDW commercial grade lcd video wall display panel,16:9 Samsung a-Si TFT-LCD
  •  700 nits brightness,MEGA DCR contrast.FHD video wall unit--- High brightness,high contrast,High gamut .
  •  FHD physical resolution 1920x1080
  •  Only 3.5 mm ultra narrow bezel, high quality ,practical ,good vision effect.
  •  2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
  •  Flexible structure design ---easy installation ,extensible,arbitrary combination
  •  Stable performance,suitable working for a long time



CCTV Video Wall​ Specifications

Model No:

DDW-LW460HN12

LCD Technology Samsung a-Si TFT-LCD
Active Screen Diagonal 46''
Pixel Pitch(WxH)

0.5302x0.5302mm

Active Display Area(WxH)

1018.08×572.67mm

Panel Dimension(WxHxD)

1021.98x576.57x66.9mm

Total Bezel Width 3.5mm | 0.208”
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backlight System LED
Luminance(nits) 700cd/sqm
Contrast 5000:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor/Outdoor
Working Temperature 0°C~50°C
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-149°F
Storage Humidity 85% non-condensing



CCTV Video Wall Board Specification

Support PC color 24bit
signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
DVI color 24bit
HDMI Line synchronization range 30-80KHZ
DP Field synchronization range 50-75HZ
Interface input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)



700 Nits 3.5mm 46 Video Wall 3x3 , Traffic Management Center Digital Video Wall700 Nits 3.5mm 46 Video Wall 3x3 , Traffic Management Center Digital Video Wall700 Nits 3.5mm 46 Video Wall 3x3 , Traffic Management Center Digital Video Wall
