178 Degree Viewing Angle 46 LCD Video Wall Display , Narrow Bezel Curved LED Video Wall

China 178 Degree Viewing Angle 46 LCD Video Wall Display , Narrow Bezel Curved LED Video Wall supplier
178 Degree Viewing Angle 46 LCD Video Wall Display , Narrow Bezel Curved LED Video Wall supplier 178 Degree Viewing Angle 46 LCD Video Wall Display , Narrow Bezel Curved LED Video Wall supplier 178 Degree Viewing Angle 46 LCD Video Wall Display , Narrow Bezel Curved LED Video Wall supplier

Large Image :  178 Degree Viewing Angle 46 LCD Video Wall Display , Narrow Bezel Curved LED Video Wall

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW460HN13

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: Curved Video Wall Backlight: LED
Resolution: 1920*1080 Input Voltage: AC 220v-250v
Total Physical Bezel: 1.7 Mm Refresh Rate: 60Hz
Brightness: 700nit Dimension: 1020.02x574.61 Mm

AC 220v-250v 46 Inch Curved Video Wall Seamless 178 Degree Viewing Angle LW460HN13





Narrow Bezel:

  •  46 inch Curved Video Wall narrow bezel available: 1.7 mm, 1.8 mm, 3.5 mm;
  •  LCD Video Wall show commercial advertisement, food picture, video play, product picture;

Curved Video Wall​ View Angle

  •  178 degree wide viewing angle, the full range of display;
  •  Different modules optional: such as heating module, built in camera, air conditioner etc;

HD Panel Display

  •  HD video wall unit: high brightness, contrast and gamut.
  •  Resolution: 1920×1080, 3840×2160; Color: 16.7M; Brightness: 700cd/m2;

Curved Video Wall Functions:

  •  Supporting 225 units (15×15) multi-matrix;
  •  Single screen display. Each unit can display the picture independently;
  •  Image overlay. Superimposed on screen another picture;
  •  Easy to choose full screen or multi-screen display by control video wall controller.

 Panel dimension and interfaces:

  •  Dimension: 1020.02x574.61 mm;
  •  Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

Total bezel width

  •  Bezel size: 1.7 mm;
  •  The front shell adapting black matt anti magnetic unique and exquisite strong in anti interface;

Connection topology and applications:

  •  Supports multiple signal input: BNC, YPbPr, VGA, HDMI, DVI and RS232;

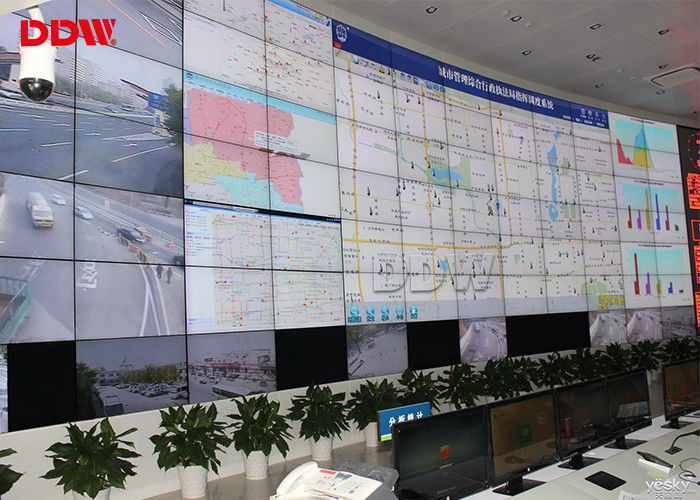

  •  Applications: Financial center, real estate center, security room, cinema, theater, etc;



Specifications:

Model No: DDW-LW460HN13
LCD Technology SAMSUNG LCD
Active Screen Diagonal 46 Inch
Total Bezel Width 1.7 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 700 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD)
1020.02x574.61x68.1mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



Curved Video Wall​ Board Specifications

Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)



178 Degree Viewing Angle 46 LCD Video Wall Display , Narrow Bezel Curved LED Video Wall178 Degree Viewing Angle 46 LCD Video Wall Display , Narrow Bezel Curved LED Video Wall178 Degree Viewing Angle 46 LCD Video Wall Display , Narrow Bezel Curved LED Video Wall
