VGA AV Input Curved Video Wall 46 Inch With Daisy Chain Processor High Gamut

China VGA AV Input Curved Video Wall 46 Inch With Daisy Chain Processor High Gamut supplier
VGA AV Input Curved Video Wall 46 Inch With Daisy Chain Processor High Gamut supplier VGA AV Input Curved Video Wall 46 Inch With Daisy Chain Processor High Gamut supplier VGA AV Input Curved Video Wall 46 Inch With Daisy Chain Processor High Gamut supplier

Large Image :  VGA AV Input Curved Video Wall 46 Inch With Daisy Chain Processor High Gamut

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDw-LW460HN11

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Panel Size: 46 Inch Bezel Width: 3.5 Mm
Surface: Anti-glare Product Name: Curved Video Wall
Backlight: LED Color: 8Bit , 16M
Brightness: 500nits Aspect Ratio: 16:9

Seamless LG Curved Video Wall 46 Inch With Daisy Chain Processor LW460HN11

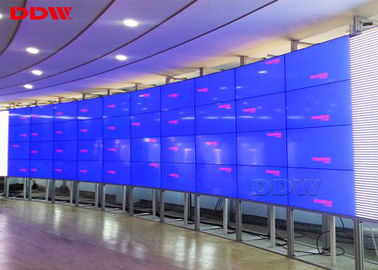

Curved Video Wall Application

Curved Video Wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.



Curved Video Wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.



46" Curved Video Wall main parameters

1. Original DDW commercial grade lcd video wall display panel

2. 500 nits brightness,MEGA DCR contrast

3. FHD physical resolution 1920x1080

4. Only 3.5 mm ultra narrow bezel, high quality ,practical ,good vision effect.

5. Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

6. HD video wall unit--- High brightness,high contrast,high gamut .

7. Flexible structure design --- easy installation ,extensible,arbitrary combination

8. Stable performance,suitable working for a long time



Curved Video Wall​ Key features:

1. Support a variety of signal ports.

2. Built-in splicing module, Support splice function

3. Support Creating one window PIP across the screen, roaming service, scaling,PIP

4. Support matrix joint control.

5. Unique DNX motion supplement image processing technology,

6. Dynamic image without motion trail

7. Splicing image processing RS-232 RJ45 loop-circuit input/output.

8. Input by remote control with wire, mobile receiver head.



Curved Video Wall​ Specifications:

Model No: DDW-LW460HN11
LCD Technology SAMSUNG LCD
Active Screen Diagonal 46"
Total Bezel Width 3.5 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH)

0.5302x0.5302

Active Display Area(WxH)

1018.08×572.67 mm

Panel Dimension(WxHxD) 1021.98×576.57x72.1mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



Curved Video Wall Board Specifications

Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)
