| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-DV490FHM-NV0 |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Panel Size: | 49 Inch | Bezel Width: | 3.5 Mm |
|---|---|---|---|
| Brightness: | 500 Nits | Product Name: | DDW LCD Video Wall |
| Color: | 8Bit , 16M | Aspect Ratio: | 16:9 |
| Panel Width: | 1077.6 Mm | Panel Height: | 607.8 Mm |
| High Light: | seamless lcd display,frameless lcd display |
||

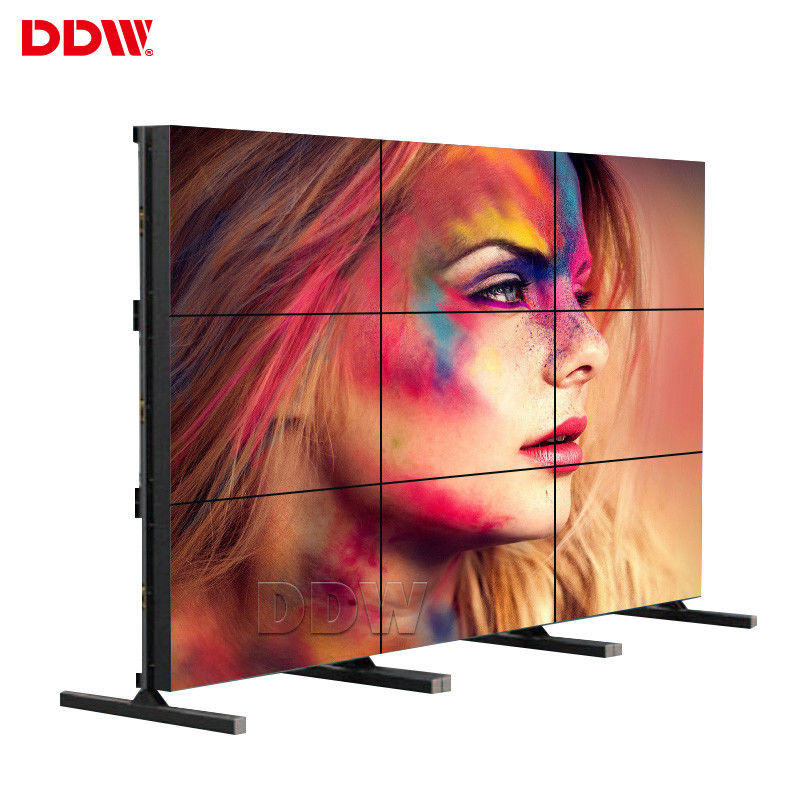

49 inch 3.5 mm 1920x1080 DDW LCD Video Wall DDW-DV490FHM-NV0
DDW LCD Video Wall Introduction
Advertising video wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.
49" DDW advertising video wall main parameters
1. Original DDW commercial grade lcd video wall display panel ,16:9 LG a-Si TFT-LCD
2. 500nits brightness,MEGA DCR contrast
3. FHD physical resolution 1920x1080
4. Only 3.5mm Ultra narrow bezel, high quality ,Practical ,good vision effect.
5. Signal interface rich --- RS232, HDMI,DVI,VGA,Y Pb Pr ,AV
6. HD video wall unit--- High brightness,high contrast,High gamut .
7. Flexible structure design ---easy installation ,extensible,arbitrary combination
8. Stable performance,suitable working for a long time
Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support Creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
6. Dynamic image without motion trail
7. Splicing image processing RS-232 RJ45 loop-circuit input/output.
8. Input by remote control with wire, mobile receiver head.
Service
Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.
DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.
Specifications
| Model No: | DDW-DV490FHM-NV0 | |||||||||
| Active Screen Diagonal | 49" | |||||||||
| Total Bezel Width | 3.5mm | |||||||||
| Aspect Ratio | 16:9 | |||||||||
| Physical Resolution | 1920x1080 | |||||||||
| Backight System | LED | |||||||||
| Luminance(nits) | 500 cd/㎡ | |||||||||
| Contrast | 5000:1 | |||||||||
| Viewing Angle | H 178°|V 178° | |||||||||
| Panel Dimension(WxHxD) |
1077.6mmx607.8mmx59.67mm |
|||||||||
| White Point | 10,000 K | |||||||||
| Display Colors | 1.07GB colors | |||||||||
| Refresh Rate | 60Hz | |||||||||
| Response Time | <=6ms | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| MTBF | > 100,000 h | |||||||||
| Surface | Anti-glare | |||||||||
| Standby Power Consumption | <3W | |||||||||
| Maximum Power Consumption | ≦160W | |||||||||
| Power Supply | AC100~240V 50/60 HZ | |||||||||
| Cooling | Low noise fans | |||||||||
| Heat Dissipation | 819 BTU/h (max) | |||||||||
| Working Time Capacity | 7x24x365hours | |||||||||
| Application Area | Indoor/Semi Outdoor | |||||||||
| Working Temperature | 0℃～50℃ | |||||||||
| Working Humidity | 0.85 | |||||||||
| Storage Temperature | -20-60°C | -4-140°F | |||||||||
| Storage Humidity | 85% non-condensing | |||||||||
LCD Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
