DP Loop Out 49 Seamless Video Wall Displays 3.5 Mm For Indoor Semi Outdoor

China DP Loop Out 49 Seamless Video Wall Displays 3.5 Mm For Indoor Semi Outdoor supplier
DP Loop Out 49 Seamless Video Wall Displays 3.5 Mm For Indoor Semi Outdoor supplier DP Loop Out 49 Seamless Video Wall Displays 3.5 Mm For Indoor Semi Outdoor supplier DP Loop Out 49 Seamless Video Wall Displays 3.5 Mm For Indoor Semi Outdoor supplier DP Loop Out 49 Seamless Video Wall Displays 3.5 Mm For Indoor Semi Outdoor supplier

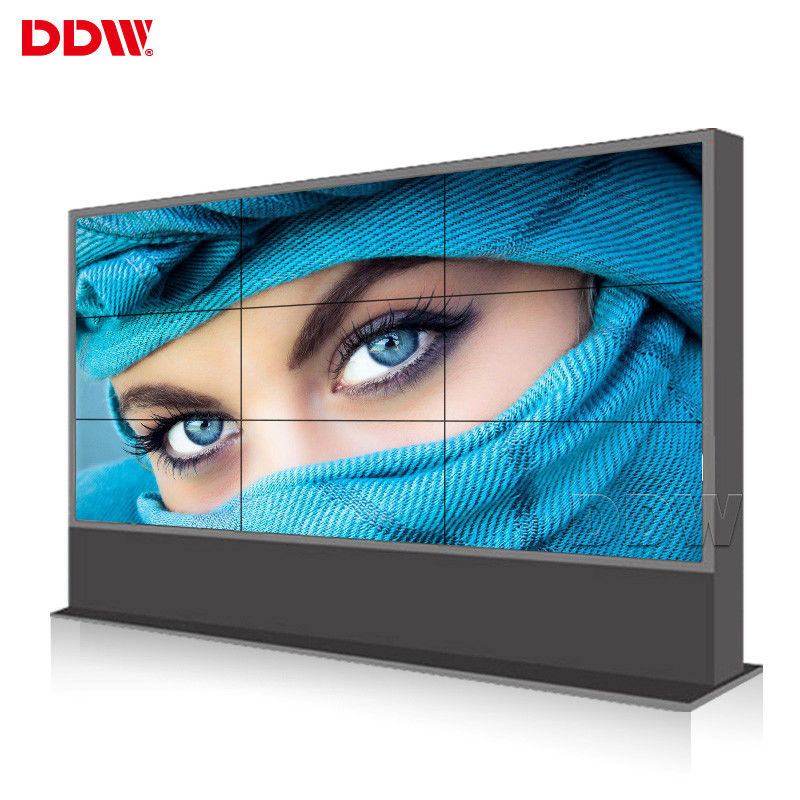

Large Image :  DP Loop Out 49 Seamless Video Wall Displays 3.5 Mm For Indoor Semi Outdoor

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: LW490DUN-THC1

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Panel Size: 49 Inch Bezel Width: 3.5mm
Surface: Anti-glare Brightness: 500 Nits
Product Name: DDW LCD Video Wall Backlight: LED
Color: 8Bit , 16M Aspect Ratio: 16:9

49 inch 3.5 mm seamless lcd display wall DDW-LW490DUN-THC1




DDW LCD video wall basic informations:

  •  With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
  •  Adapting modular components, making maintenance operations and parts replacement very easily;
  •  The installation method: floor standing cabinets;
  •  Dot Pitch: 0.56mm(H)*0.56mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
  •  Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
  •  7x24x365 keep working;

DDW LCD video wall key features:

  •  Panel size: 46", 49", 55", 60" optional
  •  Ultra narrow frame design, the narrowest bezel is 3.5 mm and the bezel can be optional.
  •  Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
  •  The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
  •  2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
  •  Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
  •  Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
  •  Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;



Specifications:

Model No: DDW-LW49DUN-THC1
LCD Technology LG IPS LCD
Active Screen Diagonal 49"
Total Bezel Width 3.5 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD) 1077.6×607.8x55.6 mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



LCD Video Wall Board Specifications

Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)
