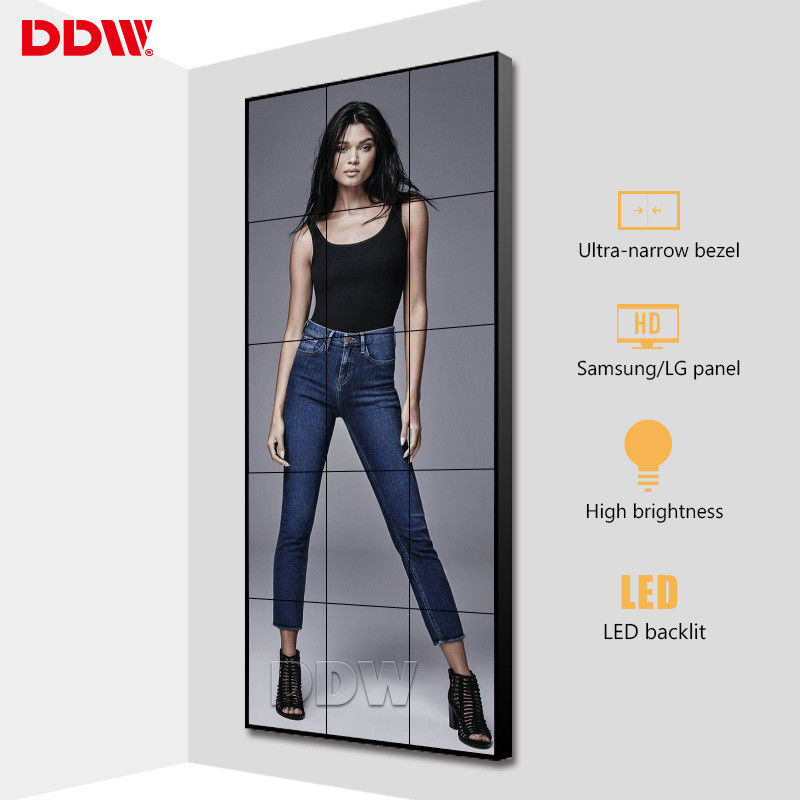

Ultra Narrow Multi Display Video Wall , Store Advertising Vertical Video Wall Screen

China Ultra Narrow Multi Display Video Wall , Store Advertising Vertical Video Wall Screen supplier
Ultra Narrow Multi Display Video Wall , Store Advertising Vertical Video Wall Screen supplier Ultra Narrow Multi Display Video Wall , Store Advertising Vertical Video Wall Screen supplier Ultra Narrow Multi Display Video Wall , Store Advertising Vertical Video Wall Screen supplier Ultra Narrow Multi Display Video Wall , Store Advertising Vertical Video Wall Screen supplier

Large Image :  Ultra Narrow Multi Display Video Wall , Store Advertising Vertical Video Wall Screen

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550DUN-THA3

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Viewing Angle: 178x178 Control Method: RS232 Control
DPM Select: Yes Panel Brand: LG
Product Name: DDW LCD Video Wall Backlight: LED
Application: Shopping Mall Cooling: Low Noise Fans

Ultra Narrow LCD Video Wall Original Display For Fashion Store Advertising DDW-LW550DUN-THA3





DDW LCD Video Wall​ basic informations:

  •  With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
  •  Adapting modular components, making maintenance operations and parts replacement very easily;
  •  Pixel Pitch:0.630mm(H)*0.630mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;

  •  Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
  •  7x24x365 keep working;



55 " DDW LCD video wall main parameters

1. Original DDW commercial grade lcd video wall display panel ,16:9 LG a-Si TFT-LCD

2. 700 nits brightness,MEGA DCR contrast

3. FHD physical resolution 1920x1080

4. Only 1.8 mm ultra narrow bezel, high quality ,Practical ,good vision effect.

5. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

6. HD video wall unit--- High brightness,high contrast,High gamut .

7. Flexible structure design ---easy installation ,extensible,arbitrary combination

8. Stable performance,suitable working for a long time



Key features:

  •  Support a variety of signal ports.
  •  Built-in splicing module, Support splice function
  •  Support creating one window PIP across the screen, roaming service, scaling,PIP
  •  Support matrix joint control.
  •  Unique DNX motion supplement image processing technology,
  •  Dynamic image without motion trail
  •  Splicing image processing RS-232 RJ45 loop-circuit input/output.
  •  Input by remote control with wire, mobile receiver head.



DDW Video wall is one of the most popular ultra narrow bezel lcd video wall panels. With 1.8 mm ultra narrow bezel, LED backlight and FHD 1080P resolution, Shenzhen DDW Technology Co.,Ltd LCD screen wall is adopting LCD panels,it can be widly used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show,rental and advertising center,museums,church,transportation and mass info display systems.



Specifications

Model No: DDW-LW550DUN-THA3
LCD Technology LG a-Si TFT-LCD
Active Screen Diagonal 55"
Pixel Pitch(WxH) 0.630x0.630mm
Active Display Area(WxH) 1209.6.x680.4mm
Panel Dimension(WxHxD) 1211.4 x682.2x53.3mm
Total Bezel Width 1.8mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backlight System LED
Luminance(nits) 700 cd/sqm
Contrast 5000:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor/Outdoor
Working Temperature 0°C~50°C
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-149°F
Storage Humidity 85% non-condensing



LCD Video Wall Board Specifications

Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)
