HD Interactive Video Wall 46 Inch 1920x1080 RJ45 Loop Daisy Chain 230W Input

China HD Interactive Video Wall 46 Inch 1920x1080 RJ45 Loop Daisy Chain 230W Input supplier
HD Interactive Video Wall 46 Inch 1920x1080 RJ45 Loop Daisy Chain 230W Input supplier HD Interactive Video Wall 46 Inch 1920x1080 RJ45 Loop Daisy Chain 230W Input supplier HD Interactive Video Wall 46 Inch 1920x1080 RJ45 Loop Daisy Chain 230W Input supplier HD Interactive Video Wall 46 Inch 1920x1080 RJ45 Loop Daisy Chain 230W Input supplier

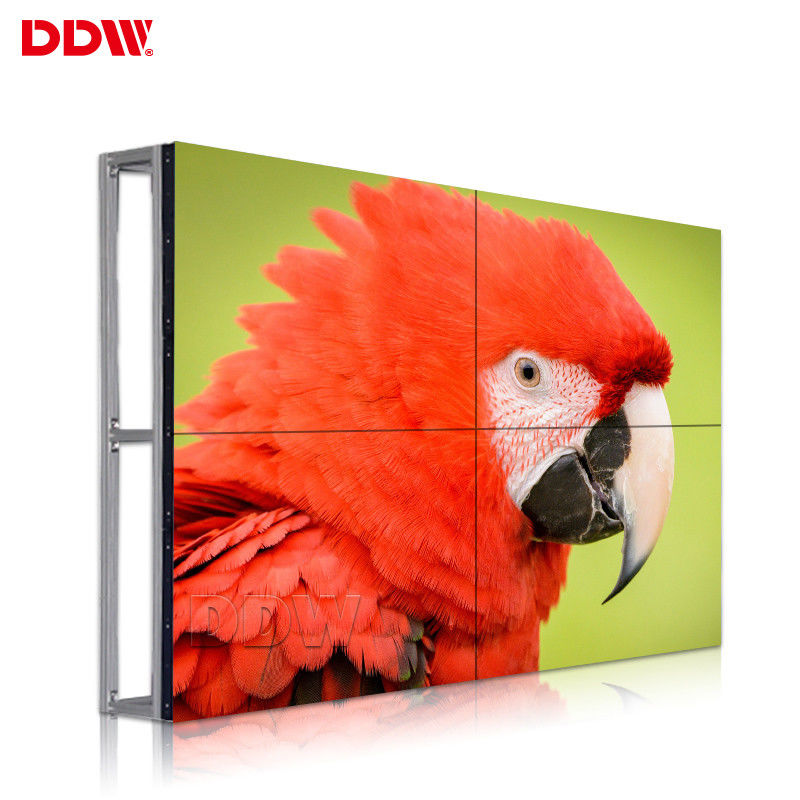

Large Image :  HD Interactive Video Wall 46 Inch 1920x1080 RJ45 Loop Daisy Chain 230W Input

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW460HN09

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: L/C , L/C , T/T
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: Interactive Video Wall Type: TFT
Application: Indoor Viewing Angle: 178x178
Color: 8Bit,16.7M Daisy Chain: RJ45 Loop
Input Voltage: 230W Control Method: RS232 Control

LW460HN09 46 Inch Hd LCD Advertising Digital Signage Video Wall 1920x1080





Specifications

LCD Interactive Video Wall

- 46",5.3mm ultra narrow bezel

- 1920x1080 resolution

- LED backlight 500nits brightnes

- 100% New Samsung screen

The world first & Best seller lcd video wall screen!!

Most cost-effective lcd video wall solution screen in the world

Model No.: DDW-LW460HN09





46" lcd video wall features:

1, Original DDW Industrial grade Samsung lcd video wall solution screen,16:9 LG a-Si TFT-LCD

2, 500nits brightness,4000:1 contrast.HD lcd video wall unit--- High brightness,high contrast,High gamut .

3, HD physical resolution 1920x1080

4, Only 5.3mm Ultra narrow bezel.high quality ,Practical ,good vision effect.

5, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

6, Flexible structure design ---easy installation ,extensible,arbitrary combination

7, Stable performance,suitable working for a long time



46" lcd video wall is one of the most popular lcd video wall panels which has 5.3mm ultra narrow bezel,FHD1920x1080 resolution,and 500nits brightness,it's one of first Samsung general video wall panels in the world.



Application

DDW lcd video wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show,rental and advertising center,museums,church,transportation and mass info display systems.



Specifications

LCD Video wall Panel Specifications
LCD Technology SAMSUNG DID LCD
Active Screen Diagonal 46" 16:9
Bezel Width Total: 5.3mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH)

0.5302x0.5302mm

Active Display Area(WxH)

1018.08×572.67mm

Panel Dimension(WxHxD) 1023.98×578.57x79.5mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



LCD Video Wall Board Specifications

Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)

HD Interactive Video Wall 46 Inch 1920x1080 RJ45 Loop Daisy Chain 230W Input

HD Interactive Video Wall 46 Inch 1920x1080 RJ45 Loop Daisy Chain 230W InputHD Interactive Video Wall 46 Inch 1920x1080 RJ45 Loop Daisy Chain 230W Input
