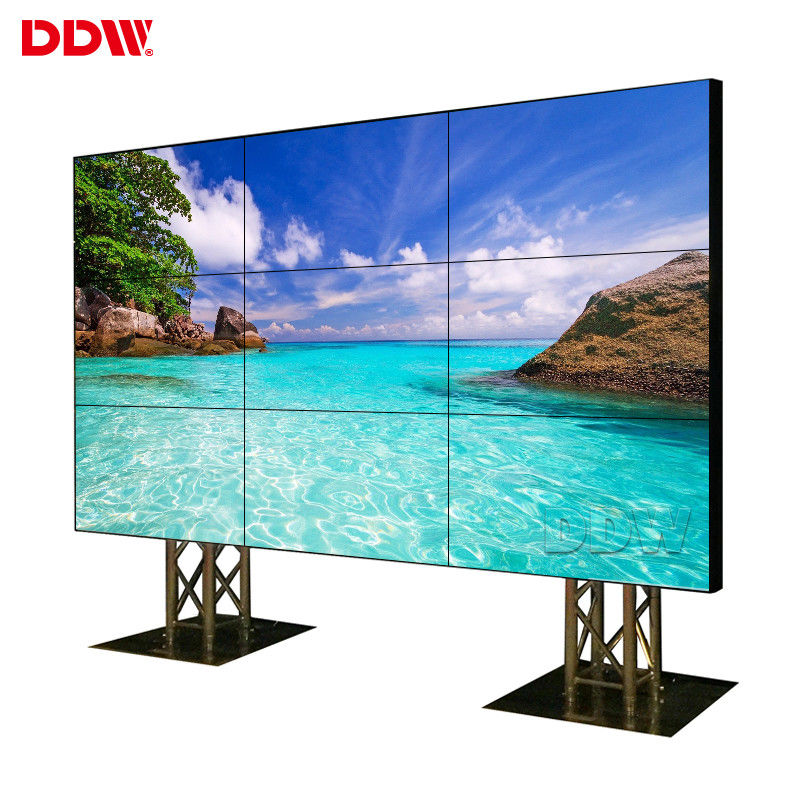

5.3mm Seamless LCD Display , 500 Nits LED Backlit Multiple TV Video Wall

Good quality Interactive Video Wall for sales
Good quality Interactive Video Wall for sales
Thanks for your hard working for our meeting room project, Your professional service , quality products and competitive price are very impressive.

—— Mr.Vincent Kim

Quickly response and fully understanding what's the client's requirement, professional technology, serious, We agree with the service of your company

—— Mr.James

A perfect shopping! we are very satisfied with their high quality LCD video wall.

—— Mr.West

I'm Online Chat Now

5.3mm Seamless LCD Display , 500 Nits LED Backlit Multiple TV Video Wall

China 5.3mm Seamless LCD Display , 500 Nits LED Backlit  Multiple TV Video Wall supplier
5.3mm Seamless LCD Display , 500 Nits LED Backlit  Multiple TV Video Wall supplier 5.3mm Seamless LCD Display , 500 Nits LED Backlit  Multiple TV Video Wall supplier 5.3mm Seamless LCD Display , 500 Nits LED Backlit  Multiple TV Video Wall supplier 5.3mm Seamless LCD Display , 500 Nits LED Backlit  Multiple TV Video Wall supplier

Large Image :  5.3mm Seamless LCD Display , 500 Nits LED Backlit Multiple TV Video Wall

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW460HN09

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Diagonal Size: 46" Total Physical Bezel: 5.3 Mm
Resolution: 1920x1080 Brightness: 500 Nits
Product Name: DDW LCD Video Wall Backlit Type: LED
Panel Width: 1023.98 Mm Panel Height: 578.57 Mm

LW460HN09 5.3mm DDW LCD Video Wall 1920x1080 500 nits W1023.98mm H578.57mm





46" DDW lcd video wall features:

1, Original DDW Industrial grade Samsung lcd video wall solution screen ,16:9 LG a-Si TFT-LCD

2, 500nits brightness,4000:1 contrast

3, HD physical resolution 1920x1080

4, Only 5.3mm Ultra narrow bezel.high quality ,Practical ,good vision effect.

5, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

6, HD lcd video wall unit--- High brightness,high contrast,High gamut .

7, Flexible structure design ---easy installation ,extensible,arbitrary combination

8, Stable performance,suitable working for a long time

46" DDW lcd video wall is one of the most popular Lcd video wall panels which has 5.3mm ultra narrow bezel,FHD1920x1080 resolution,and 500nits brightness,it's one of first Samsung general videowall panels in the world.





DDW LCD video wall basic informations:

  •  With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
  •  Adapting modular components, making maintenance operations and parts replacement very easily;
  •  The installation method: floor standing;
  •  Dot Pitch: 0.53mm(H)*0.53mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
  •  Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
  •  7x24x365 keep working;



Application

Samsung lcd videowall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show,rental and advertising center,museums,church,transportation and mass info display systems.



Specifications

Samsung video wall Panel Specifications
LCD Technology SAMSUNG DID LCD
Active Screen Diagonal 46" 16:9
Bezel Width Total: 5.3mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD)

1023.98x578.57x79.5mm

White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



LCD Video Wall Board Specifications

Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)

5.3mm Seamless LCD Display , 500 Nits LED Backlit  Multiple TV Video Wall5.3mm Seamless LCD Display , 500 Nits LED Backlit  Multiple TV Video Wall5.3mm Seamless LCD Display , 500 Nits LED Backlit  Multiple TV Video Wall
